BMW DSP Woofer System
Mirrored from http://www.nextmill.net/bmw540/
(2000 540iA version)
Well I've been looking for documentation on the DSP system ever since I ordered my car. No one was able to provide full pictures of the woofer enclosure. So I have now taken pictures of the enclosure and documented sizes for everyone to enjoy.
Two 5.25" Woofers (5 5/8" spacing diagonally between corner screw holes)
2 5/8" Deep (Max depth is 2.75") 4 3/8" Woofer Cone Diameter 5" Woofer Casing (width)
Dual Voice Coil 8 ohm per voice coil (gives you 4 speaker input sets)
Enclosure Manufacturer : NOKIA (Bandpass Type)
After removing the enclosure I measured that I can place a 32 5/8" wide x 16.5" tall custom sealed enclosure to fire through the armrest into the cabin. (I plan to place a 12" Square Kicker Solobaric into the enclosure I build)
(See Comments Between Pictures)

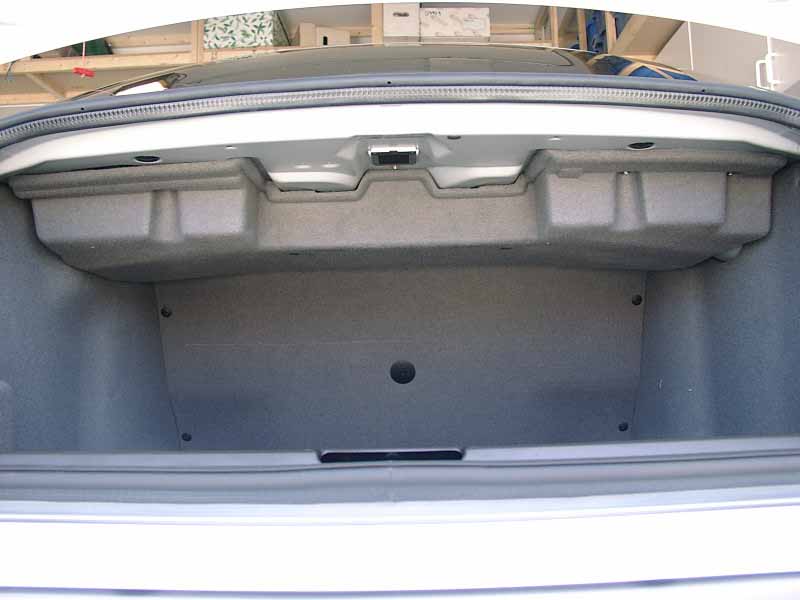

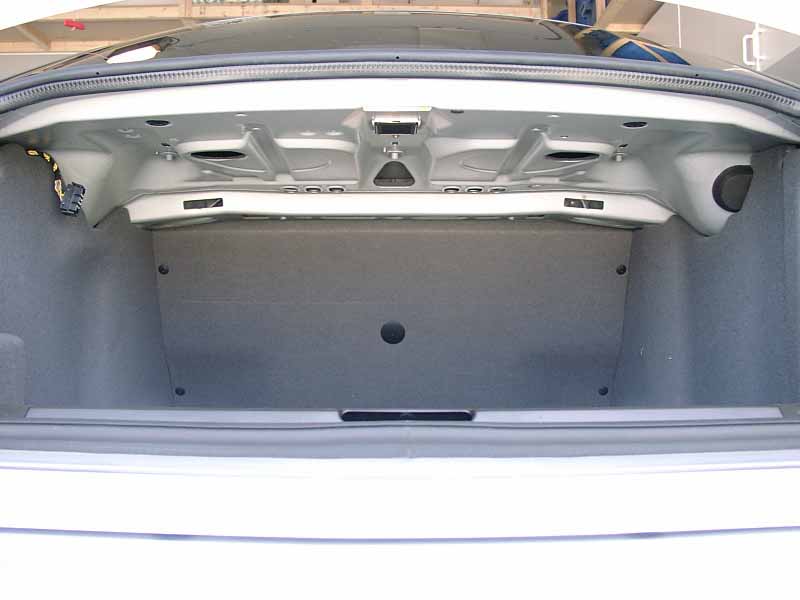

Enclosure in stock location hanging from deck
Removable with 5/16" socket and flathead screwdriver from trunk
3 Screws Removed drops the carpet upholstery down (Do not pull off yet!)

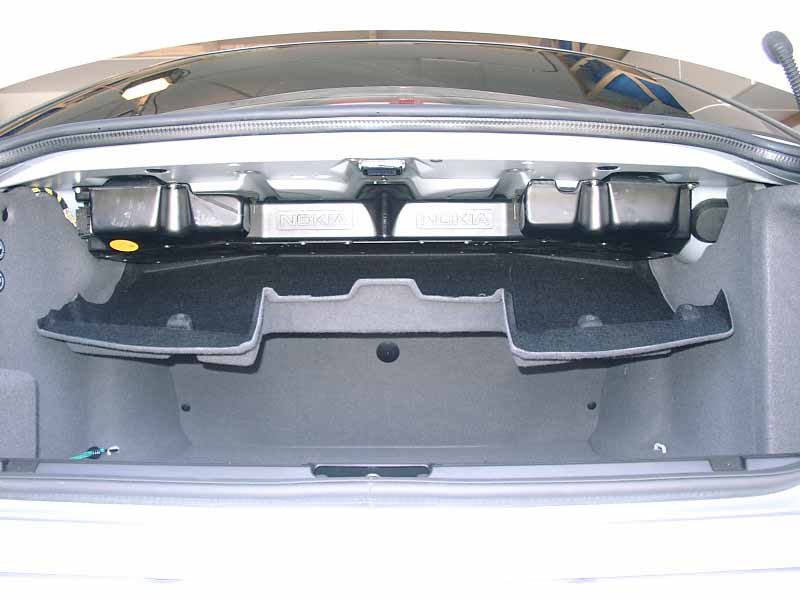

Enclosure completely removed (4 screws and two snapin plugs)

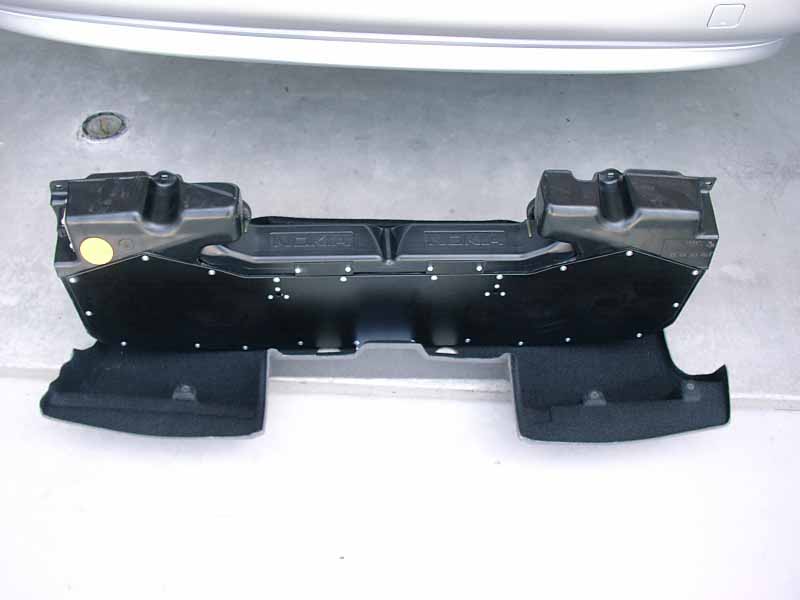

NOKIA DSP Woofer Enclosure and carpet upholstery

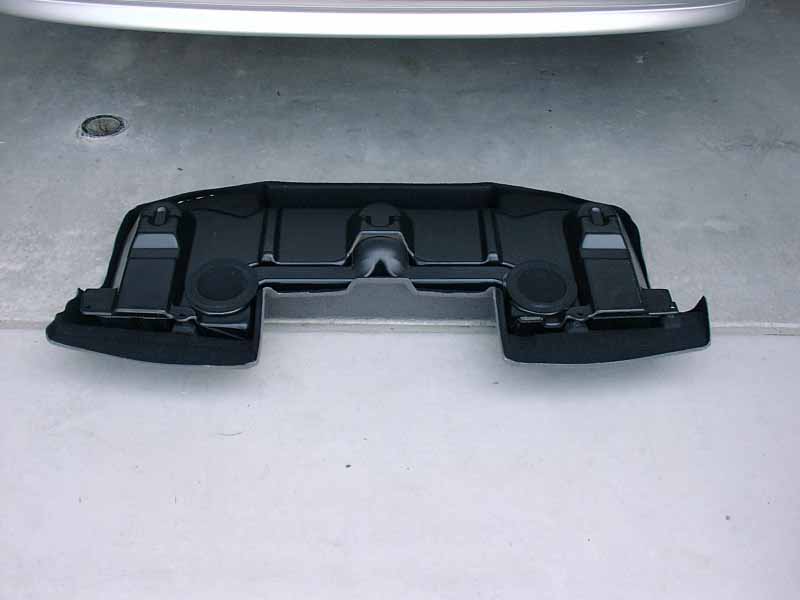

NOKIA Enclosure standing upright to show bottom

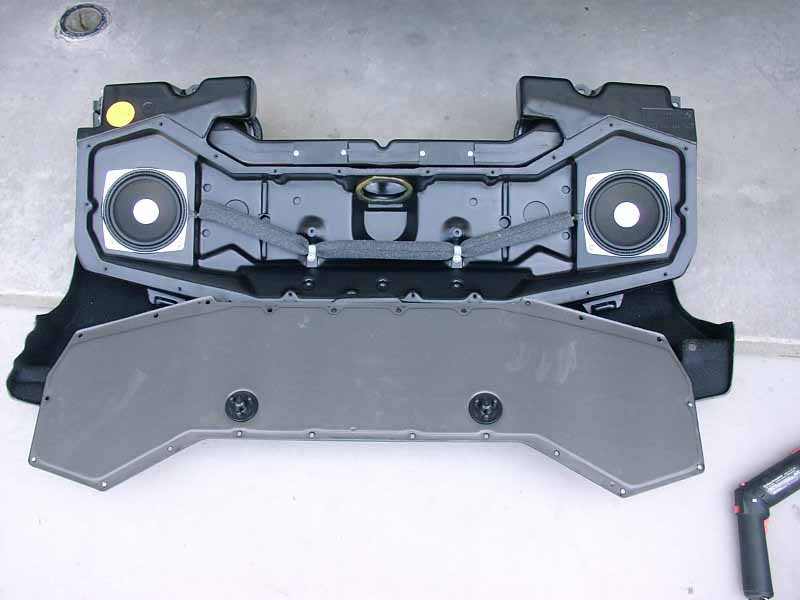

Bottom of Enclosure removed to reveal two 5" woofers

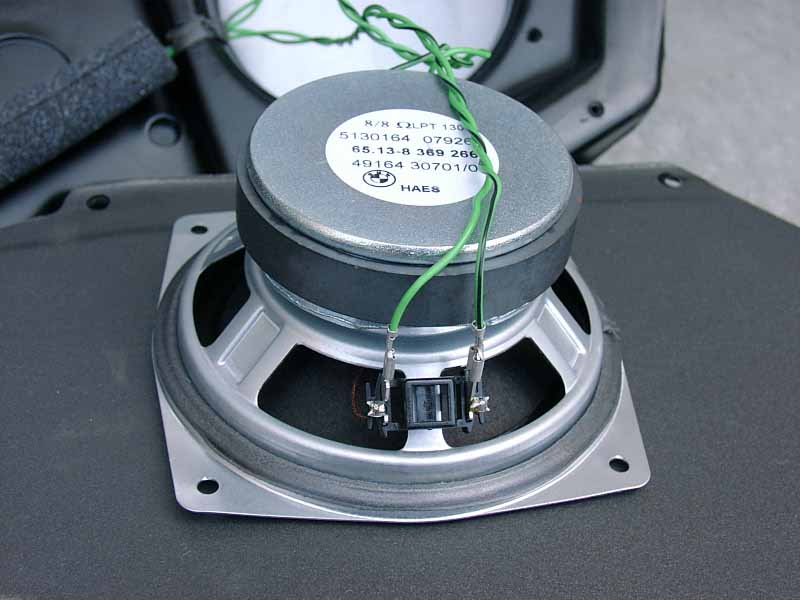

Right side woofer removed - 8/8 ohm 5" Woofer

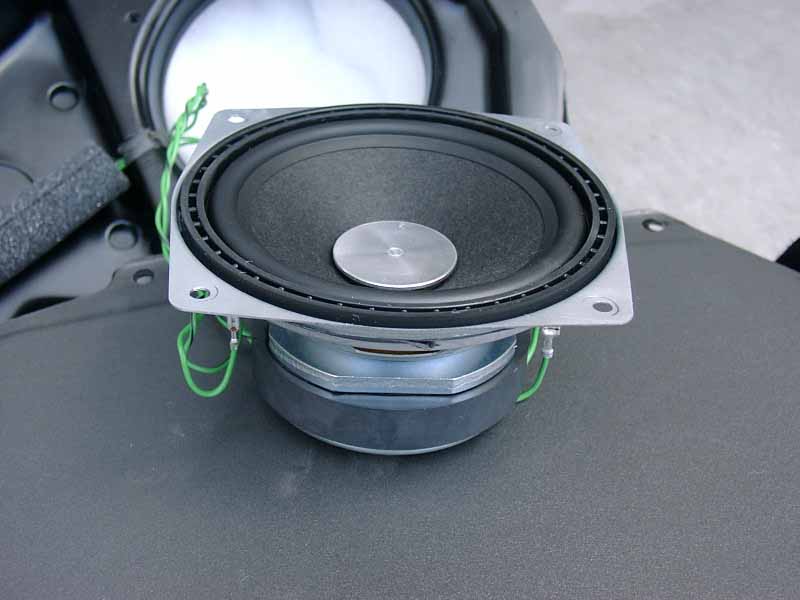

5" Woofer (5 5/8" Spacing diagonally across cone between mounting holes)

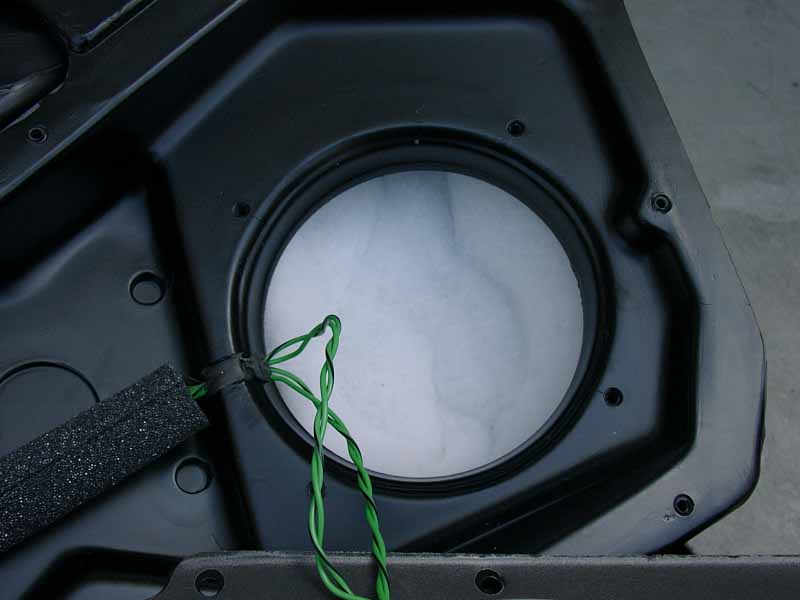

Hole that the driver sits in (polyfill inside) 2.75" MAX Depth (Stock is 2 5/8" Deep)

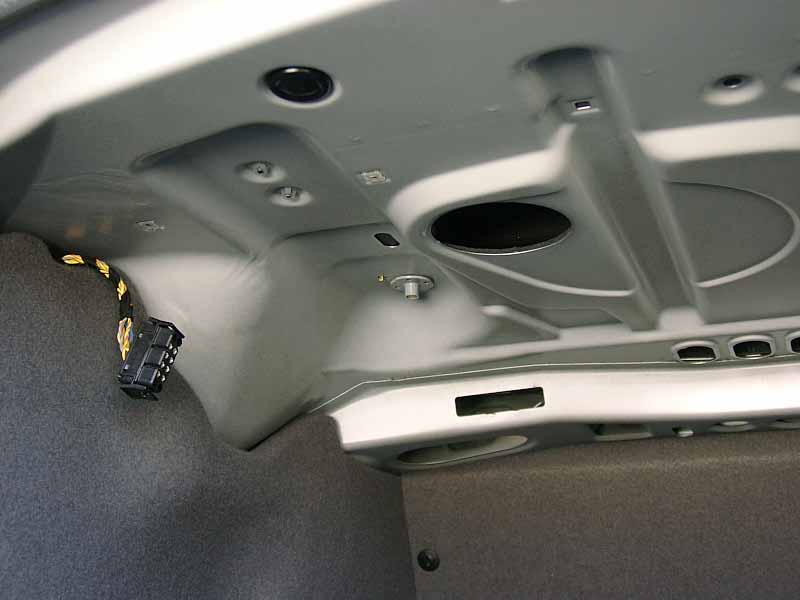

LEFT - Woofer Wiring Harness RIGHT - Large hole that enclosure vents into cabin through)

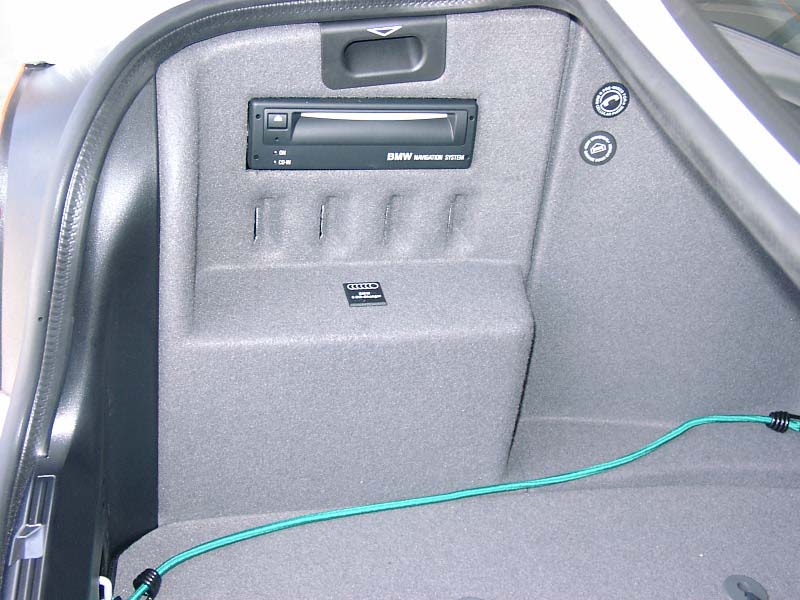

BMW Navigation System Mounts through cover
