Seat parts that help resolve movement issues.
(archive link: http://www.bimmer.org/5series/messages/archive/msgsy2000w47/99513.html)

Posted by mola on November 22, 2000 at 04:00:02:

In Reply to: Look in the archives for "JAWS" posted by ilya on November 22, 2000 at 01:57:21:

I took my car into Irvine BMW because my front seat is loose. When I turn into a corner the seat clicks side to side as if there were some play. The have already replaced the rails and now say nothing can be done. Is this true?





Posted by Jim Cash on July 03, 2000 at 20:05:23:

In Reply to: BMWNA -- driver seat "click",movement posted by Chip on July 03, 2000 at 15:17:58:

: What's the official solution to the driver's seat
: clicking/movement problem? I've seen two solutions

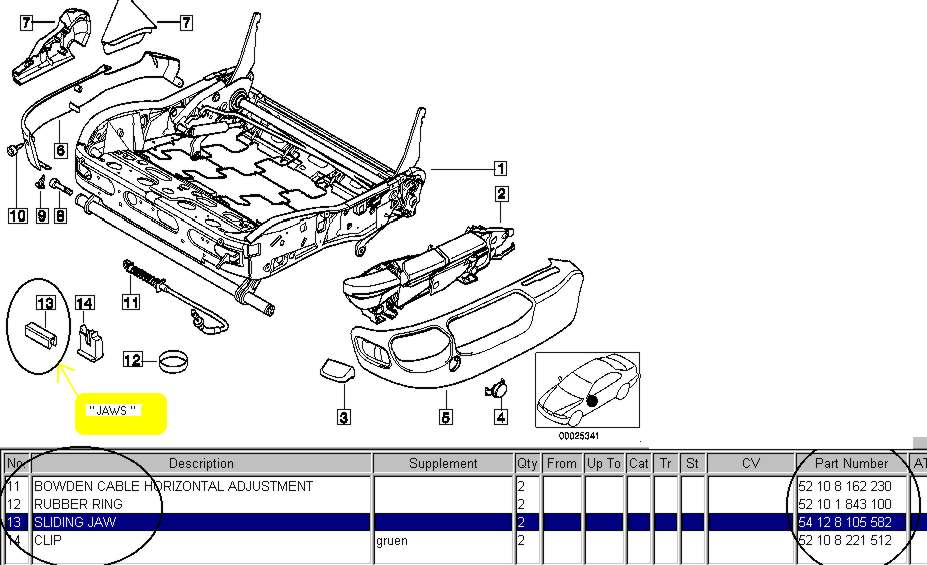

: here: 1. "sliding jaws", 54 12 8 105 582 and another
: 2. "rails" 1 52 10 8 207 203
: "cover" 1 52 10 8 217 315

: Are both possible solutions or is one or the other the
: accepted solution now?

: Thanks


Replacing the rails did not fix mine.

But lubing the bushings, and installing the sliding jaws did.

The clickling, and sideways movement are 2 separate problems. The jaws are for the sideways movement of the seatback.

Jim Cash
